Scaffolding system with pins

The scaffolding system with pins is made up of frames with a pin coupling system for positioning ledgers and diagonals.
Due to its simple assembly it is widely used by construction companies. Tube and coupler scaffolding can be integrated for special operations. The elements of the prefabricated scaffolding were designed for a simple and safe assembly. The wide range of accessories allows the design of projects meeting the most sophisticated and complex construction and architectural techniques. All the elements of the scaffolding were tested and certified by the I.S.P.E.S.L. Laboratory. (Safety Technology Departments and authorized by the Ministry of Labour and Social Affairs with specific AUTHORIZATIONS AND EXTENSIONS). An efficient system for the control of weldings makes CONDOR scaffoldings with pins reliable and trustworthy over the time. The scaffolding with pins is recommended for both renovations and new constructions.

The characteristics of the system are:

– Steel: S235JR – Diameter tube: 48.3 mm x 2.90mm – Coupling: pins – Spans: 180 cm – Authorization for construction loads up to: 300 daN/mq (cl 4,) – Certifications: Ministry Authorizations, EN 12810.

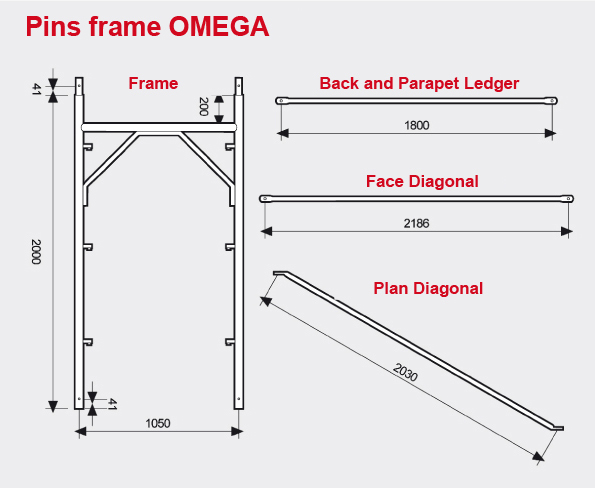

Pins frame OMEGA

Pins frame scaffolding Omega

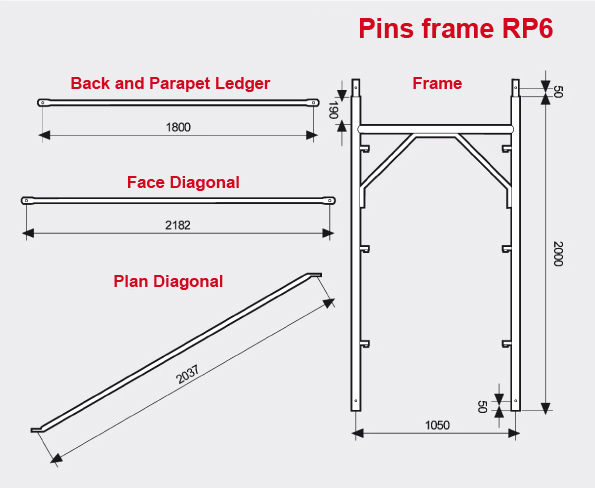

Pins frame RP6

Pins frame scaffolding RP6

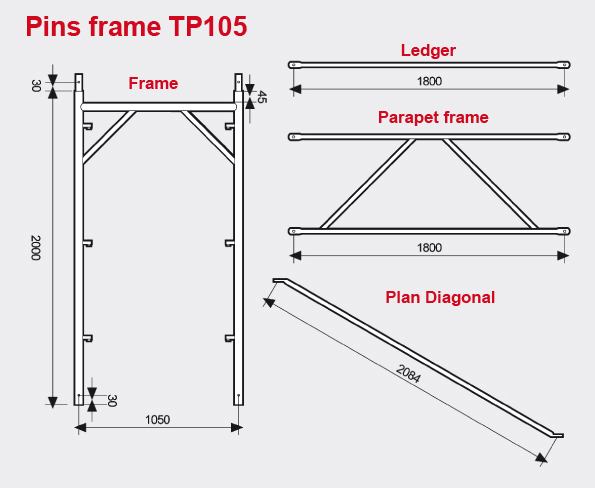

Pins frame TP105

Pins frame TP105

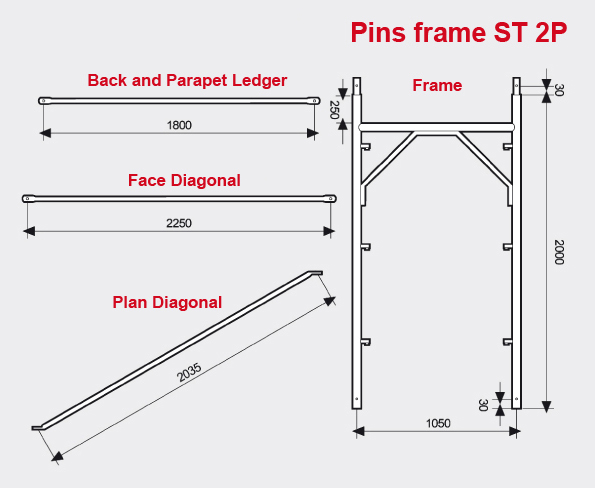

Pins frame ST 2P

Pins frame ST 2P

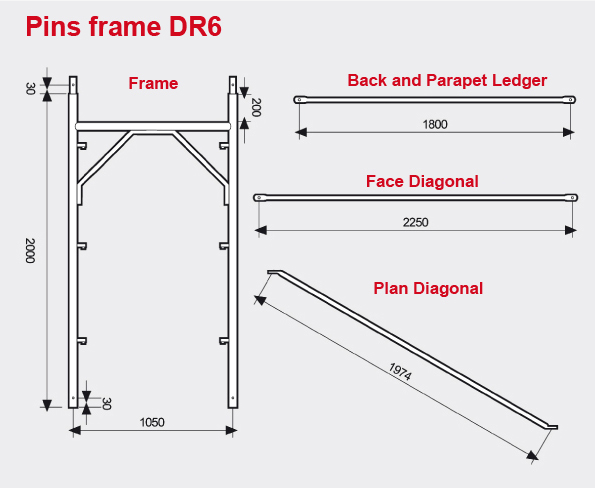

Pins frame DR6

Pins frame DR6

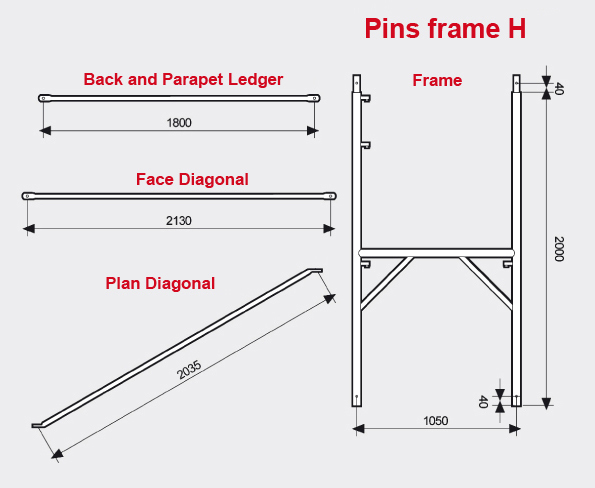

Pins frame H

Pins frame H
